| สถานที่กำเนิด: | เซี่ยงไฮ้จีน |
| ชื่อแบรนด์: | SHQN |
| ได้รับการรับรอง: | ISO 9001 |
| หมายเลขรุ่น: | รูปที่ 1502 อ้างอิง; ยืนยันผู้ผลิตสหภาพและการวาดตราประทับ |
| จำนวนสั่งซื้อขั้นต่ำ: | 500 ชิ้น |
|---|---|
| ราคา: | EXW USD$0.1/pc-$2/pc |
| รายละเอียดการบรรจุ: | ถุงพลาสติก + กล่อง |
| เวลาการส่งมอบ: | 7-15 วัน |
| เงื่อนไขการชำระเงิน: | L/C, T/T, Western Union, Western Union, โอนเงินผ่านธนาคาร |
| สามารถในการผลิต: | 50,000 ชิ้นต่อสัปดาห์ |
| วัสดุ: | เกรด NBR, HNBR หรือ FKM; การออกแบบ PTFE ระบุไว้แยกต่างหาก | ขนาด: | การอ้างอิงที่กำหนดขนาด 1, 1.5, 2, 3 และ 4 นิ้ว; ตรวจสอบขนาดช่องซีล |
|---|---|---|---|
| สี: | ดำ, แดง, ม่วง, ขาว ฯลฯ | ความแข็ง: | การอ้างอิงช่วงยาง 80-85 Shore A; เห็นด้วยกับเกรดและเป้าหมาย |
| พิมพ์: | ยาง, ยางแหวนทองเหลือง, ยางแหวนเอสเอส | อุณหภูมิ: | ยืนยันเกรดวัสดุที่เลือกสำหรับสื่อการทำงานและอุณหภูมิ |
| ขั้นต่ำ: | 500ชิ้น | เวลาการส่งมอบ: | 7-15 วัน |
| ตัวอย่าง: | มีอยู่ | คุณสมบัติ: | การกักเก็บและการปิดผนึกของริมฝีปากขึ้นอยู่กับโปรไฟล์ คอมปาวน์ และความพอดีของข้อต่อ |
| การใช้งาน: | สำหรับสหภาพแฮมเมอร์ | แอปพลิเคชัน: | สาขาทรัพยากรและอุตสาหกรรมน้ํามันและก๊าซ |
| certification: | ISO 9001 quality management system | ||
| เน้น: | 80-85 ริม NBR ยางตราสหพันธ์ค้อน,ผนึกสหภาพหมัด HNBR สําหรับสนามน้ํามัน,ตราสหกรณ์แฮมเมอร์ในสนามน้ํามัน พร้อมรับประกัน |
||

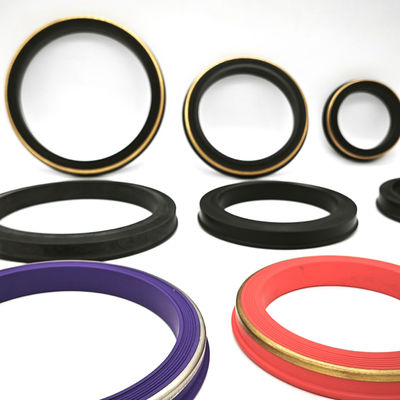

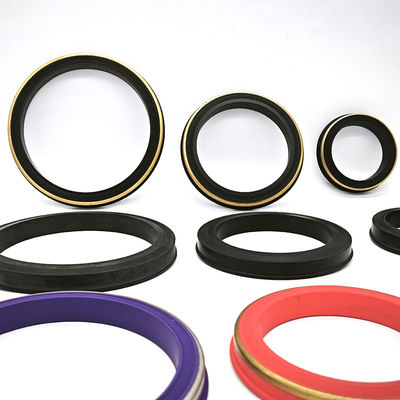

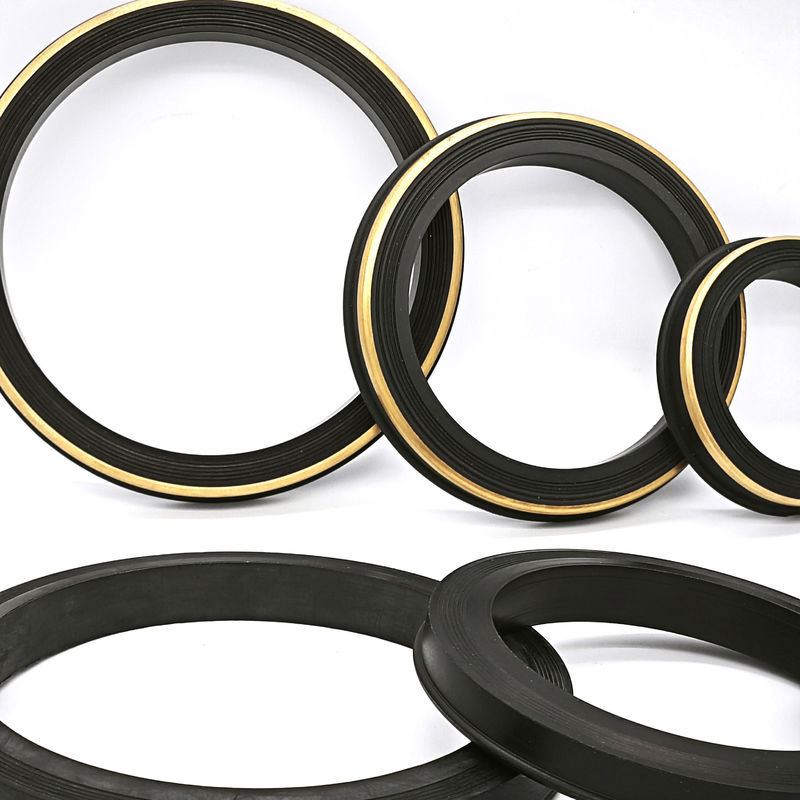

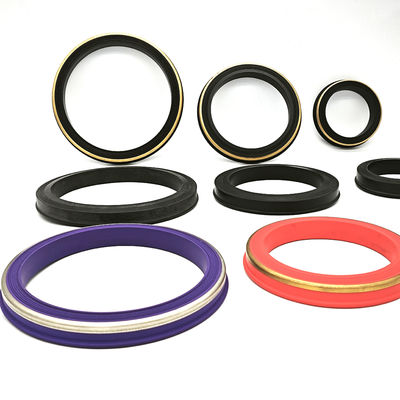

Replacement Hammer Union Seals: Figure 602, 1002 and 1502 Fitment References
Product introduction
Hammer union lip seals fit the designated seal pocket in pipe or hose union connections. The union hardware locates and compresses the seal when assembled to the equipment procedure. A retaining lip helps retain the seal in its pocket during handling; confirm the lip profile and seating dimensions against the mating union.
Shanghai Qinuo supplies replacement hammer union seals with catalogue references from 1 to 4 inches for Figures 602, 1002 and 1502. Select the exact Figure, size and manufacturer seal profile for each order line. NBR, HNBR and FKM are alternative rubber compound options; PTFE designs require separate specifications. Review the actual fluid, additives, cleaning media and temperatures with the selected grade. Sour service cannot be established from the polymer name alone.
![]()
![]()
![]()
A nominal pipe size does not define the seal dimensions, and the same nominal size does not make different Figures interchangeable. Send the union marking and seal-pocket drawing with the quotation request. Identify the rubber-only or brass/stainless backup arrangement and whether the backup is separate or bonded.
| Order line | Reference to provide |
|---|---|
| Fitment | Union manufacturer, Figure, nominal size and drawing revision |
| Dimensions | Seal profile, inside/outside diameters, height and tolerances |
| Rubber specification | Compound grade and target Shore A hardness; catalogue reference 80-85 Shore A |
| Operating duty | Fluid composition, temperatures and complete union pressure requirements |
The seal alone does not establish a working-pressure rating. Keep each Figure, size and compound separately labelled for maintenance stores, and follow the union manufacturer’s inspection and assembly procedure. Color is not proof of material compatibility.
About package and shipping
![]()
![]()
![]()
![]()
![]()
![]()
Company and factory
Shanghai Qinuo Industry Co., Ltd supplies replacement oilfield seals under Royal Way and SHQN. Hammer union seal enquiries can be discussed from the exact union reference and seal drawing.
Qinuo provides rubber, plastic and machined-part enquiries for industrial applications. For hammer union seals, agree the profile dimensions, compound grade and inspection requirements.
Confirm tooling, order quantity, production availability and dispatch with the quotation. Keep each union Figure, nominal size and compound reference separately identified in the package.
We operate an ISO 9001 quality management system. Agree drawing revision and material and dimensional inspection requirements with the order. Include the approved seal drawing revision, compound grade, target hardness and tolerance, finished dimensions and service-specific qualification requirements.
![]()
![]()
![]()
![]()
![]()
![]()
